PRODUCT PARAMETERS

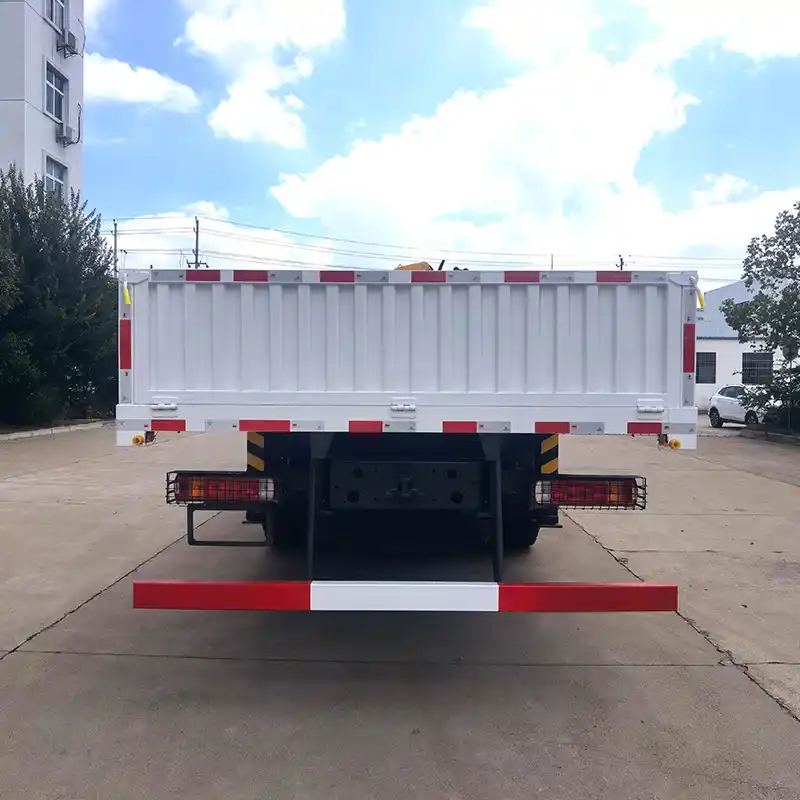

12-Ton Truck-Mounted Crane HOWO
| project | Descriptions | Specifications |
| Basic | Overall dimensions(mm) | 12000×2550×3820 |
| curb weight(Kg) | 16280 | |
| Loading capacity(Kg) | 8590 | |
| Total mass(Kg) | 25000 | |
| Body | Cargo box size（mm） | 8600x2450x550 |
| Maximum lifting weight (kg) | 8000 | |
| Working radius (m) | 15 | |
| Lifting height (m) | 16.5 | |
| Chassis
|
Chassis brand | HOWO |
| Drive form | 6*4 | |
| Steering wheel | Left hand drive | |
| Wheelbase(mm) | 5800+1350 | |
| Engine brand and model | WP10.340E22 | |
| Max engine power(Kw) | 250/340HP | |
| Gearbox | HW19710,10 speed forward 2 reverse |
VEHICLE ADVANTAGES
TYPES OF CRANE
Straight -arm type: It is easy to operate and has high stability.
Folding -arm type: lt features high efficiency and space -saving
CRANE ACCESSORIES
Hexagonal boom structure
Cranes Hook
Details of hook wire rope
Galvanized steel wire rope
TRANSPORTATION FUNCTION
Auxiliary Beam Chassis Process: The auxiliary beam chassis adopts cold riveting technology with lightweight design, resistant to deformation, cracking and corrosion.
The connection between the cargo box and the auxiliary beam is firm.
Cargo box
Hinge
Rope tightening device
Box railing locking handle
HYDRAULIC CONTROL SYSTEM
1.Overall hydraulic system
2.Important partial hydraulics
3.Boom hoist cylinder
4.Hydraulic oil tank
5.Hydraulic valve
6.Hydraulic pipeline
OPERATION AND CONTROL FUNCTIONS
Wireless remote control
Operating handle
360° rotation of crane turntable
High – altitude operation seat
Upper vehicle ladder
Upper operation ladder
SAFETY PROTECTION
Positioning of telescopic boom wire rope
Lifting capacity chart
Balance valve
U – bolt for crane installation
Crane outrigger
Level gauge
Radiator
PRODUCTION PROCESS
1. Plate blanking
2. Boom welding and manufacturing
3. Boom assembly completed
4. Crane base assembly
5. Mounting the complete crane onto the chassis
6. Floor welding
7. Welding and installing the cargo box
8. Complete vehicle assembly finished
APPLICATION SCENARIOS
PACKAGING AND TRANSPORTATION
After-sales and service
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
Delivery Time
We do our best to ensure that orders are ready for dispatch within 24 working days (after payment is received)
Delivery areas
Whether you are in a bustling city or a quiet island, our global logistics network can seamlessly reach any sovereign country and region in the world.
